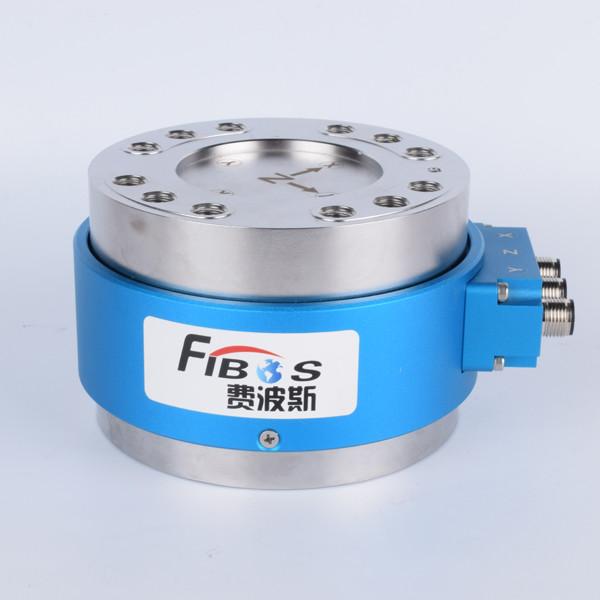

Fx Fy 20kN FZ 100kN ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor
1. Descriptions
Fx Fy 20kN FZ 100kN ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor FA731 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA731 can be used to measure 3 axis force, its X axis,Y axis force range are same 20kN, its Z axis force is 100kN, its Rated output range is 1.2±30%mV/V, and its Zero Balance range is ±1%mV/V.
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity | FX/Y:20kN FZ:100kN |
| Rated output | 1.2±30%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10°C |
| Temp.effect on zero | 0.05%F.S./10°C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10-60°C |
| Operating Temp Range | -20-80°C |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | ⌀5x3000mm |
| Material | Stainless steel |

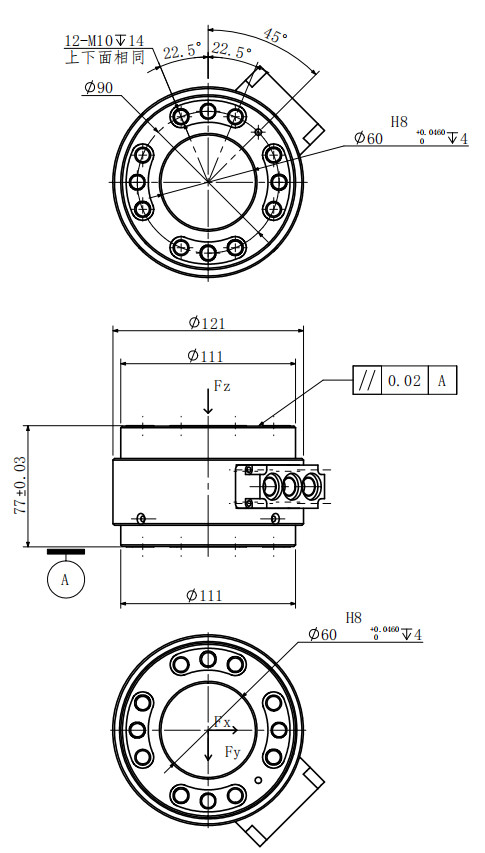

3. Dimension
4. Application
Fx Fy 20kN FZ 100kN ≤0.1%F.S. Stainless Steel 3 Axis Force Sensor FA731 can be used in the polishing industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
